Liquid Cold Box Resin For Core Making Center High Purity 99.9% For Brake Liner Bonding
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | CHISHUO |
| Model Number: | CS501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | $2,300.00/tons 1-9 tons |
|
Detail Information |
|||
| CAS No.: | 25212-86-6 | Other Names: | / |
|---|---|---|---|
| MF: | C5H6O2 | EINECS No.: | / |
| Type: | Synthetic Resin And Plastics | Purity: | 99.9% |
| Appearance: | Light Yellow To Dark Brown | Packing: | 220L/drum |
| Shape: | Liquid | Density: | 1.05~1.20 |
| Viscosity: | ≤250 | ||
Product Description
Product Description
item | value |
CAS No. | 25212-86-6 |
Other Names | Cold Box Resin |
MF | C5H6O2 |
Place of Origin | China |
Shandong | |
Type | Synthetic Resin And Plastics |
Brand Name | CHISHUO |
Purity | 99.9% |
Appearance | Light yellow to dark brown |
Shelf life | 6 Months |
Packing | 220KG/ Barrel; 500KG/ Barrel; 1000KG/IBC |
Shape | Liquid |
CAS | 25212-86-6 |
Keywords | Resin |
MOQ | 1Ton |
* Product performance description

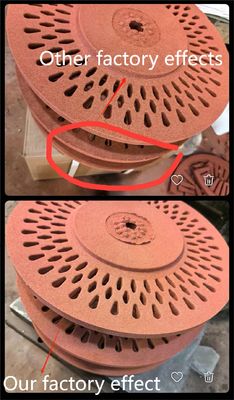

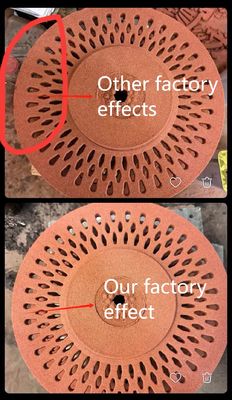

1. High strength and good toughness can reduce casting defects and improve rate of finished products; 2. Good moisture resistance, adaptable to high temperature and high humidity environment, extending the storage life of the sand core; 3. The core sand has good fluidity, high sand core density and good surface quality; 4. Fast curing, good hardness and permeability, improve core making efficiency and reduce triethylamine consumption; 5. Core sand can be used for a long time and is suitable for core making in summer; 6. The content of harmful substances is low, which improves the working environment and is highly environmentally friendly.
Cold Box Resin 501 * The recommended purification time is 2 to 3 times of the curing time to reduce the residual triethylamine in sand core and improve working environment.
Product Usage
*Product usage introduction
1. Adding ratio of resin and catalyst The amount of resin added: Component I: 0.3%~1.0% (accounting for the weight of the sand), component II: 0.3%~1.0% (accounting for the weight of the sand). The ratio of the two components is adjustable between (55~50): (45~50); Component Ⅰis high, the sand core has high initial strength and small gas generation;Component Ⅱ is high, the core sand can be used for a long time,high final strength,good demoulding effect,large pouring smoke and gas generation,bright carbon and pore defects in castings increased risk; Catalyst dosage:Usually 0.5~1.5kg/ton of sand.The factors that affect the catalyst dosage include: equipment, molds, sand core size and shape, sand temperature, and ambient temperature. Generally, the dosage of catalyst is the smallest in summer and the largest in winter.
2. Sand mixing process If a gap type sand mixer is used, different types of sand mixing equipment have different sand mixing times. Adjust the sand mixing time recommended by the equipment manufacturer to ensure that the resin is evenly mixed as a standard; The order of adding resin: first add component I resin, mix it with sand for a few seconds, then add component II resin, mix the sand evenly and use it as soon as possible; Control the amount of mixed sand according to the size of the sand core. The mixed core sand must be used up within the usable time. It is recommended that the use time be no more than 1 hour; Taking into account the influence of resin viscosity and sand temperature, it is recommended that the sand mixing time be extended by 15%-50% during the low temperature season in winter compared with summer.
Type | Component Ⅰ | Component Ⅱ |
Appearance | Yellow to red brown | Brown |
Viscosity(20℃)mPa.s | ≤350 | ≤100 |
Density (20℃)q/cm³ | 1.02-1.12 | 1.10-1.20 |
F.F.% | ≤0.3 | / |
Shelf life | 6 | 6 |
*Precautions: 1. This product needs to be sealed to prevent mo isture and clumping. 2. This product may irritate your eyes and skin. lf it comes into contact with your eyes, rinse immediately with running water or seek medical a advice. 3. The product is flammable, so keep it away fron n fire sources and use dry powder to extin- guish the fire in case of fire. 4. Handle with care during loading and unloading.
Click here to get a free quotation!
Related Products
Inspection Report
Packing&Shipping
Usually packed in iron drums with a net weight of 220 kg.
It is recommended to store between 10 - 35℃.
The shelf life is 6 months.
