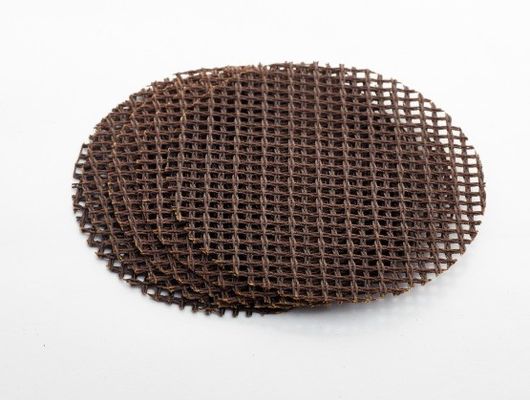

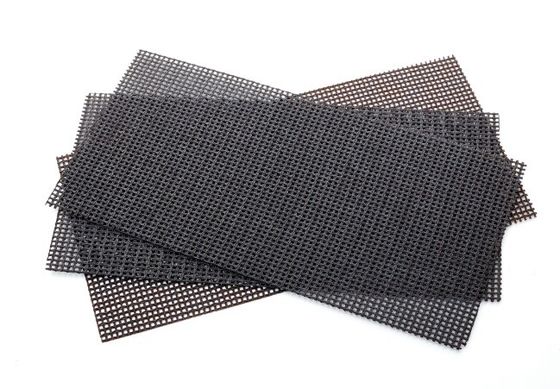

High Silica Fiberglass Filter for Cast Steel and Cast Iron Mesh Screen Cap Filtration
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | CHISHUO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $0.20/pieces |
|
Detail Information |
|||
| Condition: | New | Warranty: | Unavailable |
|---|---|---|---|
| Applicable Industries: | Other, Casting Factory | Weight (KG): | 0.2 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | Not Available | Core Components: | Not Available |
| Use: | Liquid Filter | Type: | Filter Elements |
| Material: | Glass Fiber | Hole Shape: | Diamond |
| Filter Rating: | 90% | Thickness: | Customize |
| Length: | Customize | Width: | Customize |
| Other Name: | High Silica Fiberglass Filter | Shelf Life: | 3 Years |
Product Description
Product Description
item | value |
Other Names | High Silica Fiberglass Filter |
Place of Origin | China |
Shandong | |
Shelf Life | 3 Years |
Customized Support | OEM |
Type | Fiberglass Mesh |
Weave Type | Twill Woven |
Sample | Sample Provided |
Brand Name | CHISHUO |
Packing | Carton Packaging |
Keywords | Casting Filter |
* Product performance description
The high-silica fiberglass cast filter is a mesh with a certain stiffness made of high-silica fiberglass mesh and molded gauze as the base material, and coated with high-temperature resistant paint on the surface. Used for smelting metal purification and filtration, effectively improving casting quality and casting qualification rate. This filter has the characteristics of good high temperature resistance, resistance to metal melt erosion, low gas production, good filtering effect, easy and economical use, etc. During the use of high-silica series casting filters, the filters can be cut into products of any specifications and placed on the parting surface of the sprue. When the box is closed and pressed, if the filter and slag bag are used in combination, the effect will be better.
1.Cast Steel Fiber Filter Features：
① The refractory degree is as high as 1650 degrees, the strength is high, and the thickness is nearly 3 times that of the iron mesh. It can effectively remove slag inclusions, molding sand falling out, and filter residue in castings. ② The turbulent flow effect is very good. Because of its thick thickness, it can be used for easy-to-cut pieces of cast iron and steel castings to effectively separate the risers of castings.
2.Cast Iron Fiber Filter Features：
① High cost performance, suitable for castings with low casting requirements, easy to use, and suitable for sand casting and investment casting; ② It can effectively remove slag inclusions, molding sand falling out, and filter residue in castings, and the turbulent flow effect is very good.

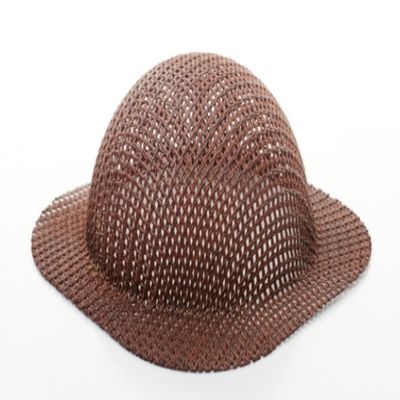

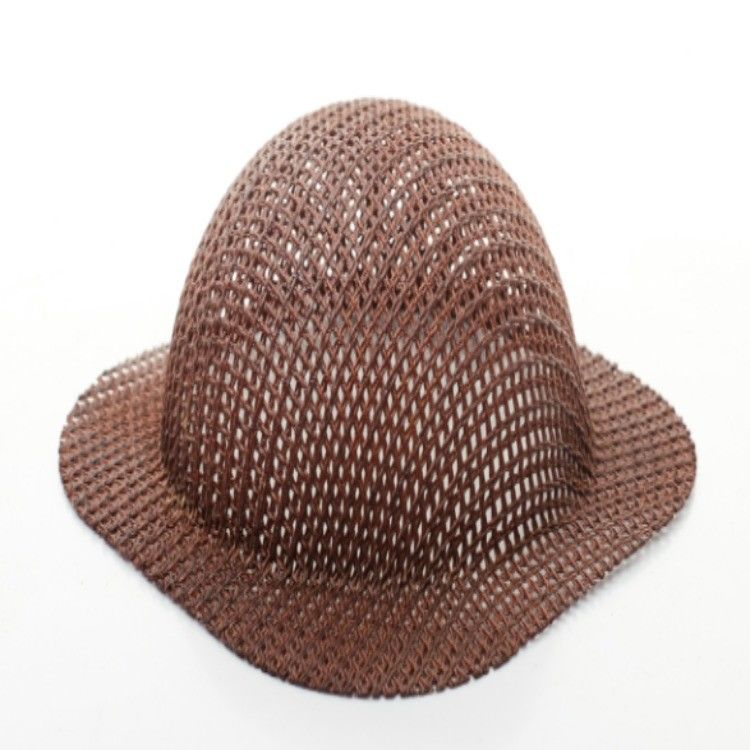

Cap filter for cast steel, cast iron can also be customized.

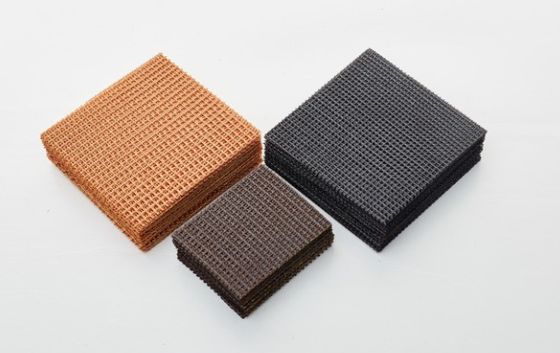

Round, square, carbonized and ordinary can be produced.
Click here to get a free quotation!
Related Products
Packing&Shipping
Use carton packaging or packaging according to user requirements, use pallets in batches, pay attention to handling with care when loading, unloading, and transportation to prevent extrusion.
Shelf life: 3 years, stored in a dry area, not squeezed.
Company Introduction
Shandong Chishuo Development Group Co., Ltd. is located in the hometown of Li Qingzhao, Wangdong Industrial Park, Mingshui Street, Zhangqiu District, Jinan City, Shandong Province.
The group company consists of Shandong Chishuo Environmental Protection Technology Co., Ltd., Shandong Chishuo Technology Development Co., Ltd., and other seven subsidiaries.
The group mainly specializes in the production and sales of casting materials and casting parts. Its main products are cold box resin, furan resin, foam ceramic filters, coatings, asbestos gaskets, release agents, Cleaning agents, adhesives, sealing mud, sealing mud strips and other casting auxiliary materials, as well as casting processing fans and automobile parts.
The group has always taken product quality as its foundation and developed together with customers based on the principle of mutual benefit; it has also cooperated with the School of Materials Science and Technology of Jiangsu University in developing new products. Long-term cooperation. The company has warehouses in many places across the country, which can conveniently provide accurate, fast and timely services to surrounding customers.
FAQ
1.Who are we?
We are based in Shandong, China, start from 2023,sell to Mid East(20.00%),
South America(20.00%),Africa(20.00%),Southeast Asia(10.00%),Oceania(10.00%),
North America(10.00%),Western Europe(5.00%),Southern Europe(3.00%),South Asia(2.00%).
There are total about 101-200 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3.What can you buy from us?
cold box resin, furan resin, filter, coatings, adhesive.
4.What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDP, DDU；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,French,Russian,Korean.
Want to Know more details about this product
